Product Information
HCCM-2100 is designed to control and monitor the temperature of critical piping system, and also monitor integrity of heater cables used to heat-trace such piping systems. The system uses patented communication methods via the heater cable and does not require dedicated communication wiring. The system is highly reliable, designed with fail-safe control modes, and performs heater cable and sensor diagnostics, and also self-diagnostics.
Total installed system cost is significantly lower than conventional temperature control and heater cable monitoring systems. The HCCM-2100 has been successfully utilized by New York City Transit Authority and various commercial institutions for the past four years. These systems are UL approved and are specified by major consulting engineers in New York.
Remote Terminal
The RT-2104 Remote communicates pipe temperature, and system integrity status to the NC-2104. The RT-2104 is connected to the heat trace cable with the cable manufacturer's UL/FM Approved splice kit. The RT-2104 Remote terminals are provided in a NEMA-4X enclosure.
Input Power: 5W @ 110/220-277 V AC, 50/60 Hz
Ambient: -10°C to 55°C (14°F to 131°F)
Storage: -25°C to 70°C (-13°F to 158°F)
Humidity: 0% to 90% (Non-condensing)
Temperature Sensor Input: Resistive temperature sensor
Mounting: Pipe or Wall
Approvals: UL for US and Canada
Network Controller
The NC-2104 is a microprocessor-based network controller. Each Network Controller can monitor and control up to four heating circuits by itself, and up to thirty-two (32) heating circuits with addition of the IO-2104 Input/Output Modules.
Input Power: 5W @ 110/220-277 V AC, 50/60 Hz
Ambient: -10°C to 55°C (14°F to 131°F)
Storage: -25°C to 70°C (-13°F to 158°F)
Humidity: 0% to 90% (Non-condensing)
Control Output: (4) Dry SPDT, 10 A @ 250 V AC
Alarm Output: (1) Dry SPDT, 10 A @ 250 V AC
Approvals: UL for US and Canada
IO Expansion Unit
The IO-2104 Expansion Units are microprocessor-based system expansion devices that allow up to 28 zones of monitoring and control to be added to the NC-2104.
Input Power: 5W @ 110/220-277 V AC, 50/60 Hz
Ambient: -10°C to 55°C (14°F to 131°F)
Storage: -25°C to 70°C (-13°F to 158°F)
Humidity: 0% to 90% (Non-condensing)
Control Output: (4) Dry SPDT, 10 A @ 250 V AC
Approvals: UL for US and Canada
Circuit Breaker Box
The distribution box supports up to 18 circuit breakers made from high-quality plastic. It is durable and can accommodate 3, 15, or 18 circuit breakers, allowing visual status checks without opening the box
Model: 3Way, 15Way, 18Way
Material: ABS + PC
Waterproof Grade: IP65

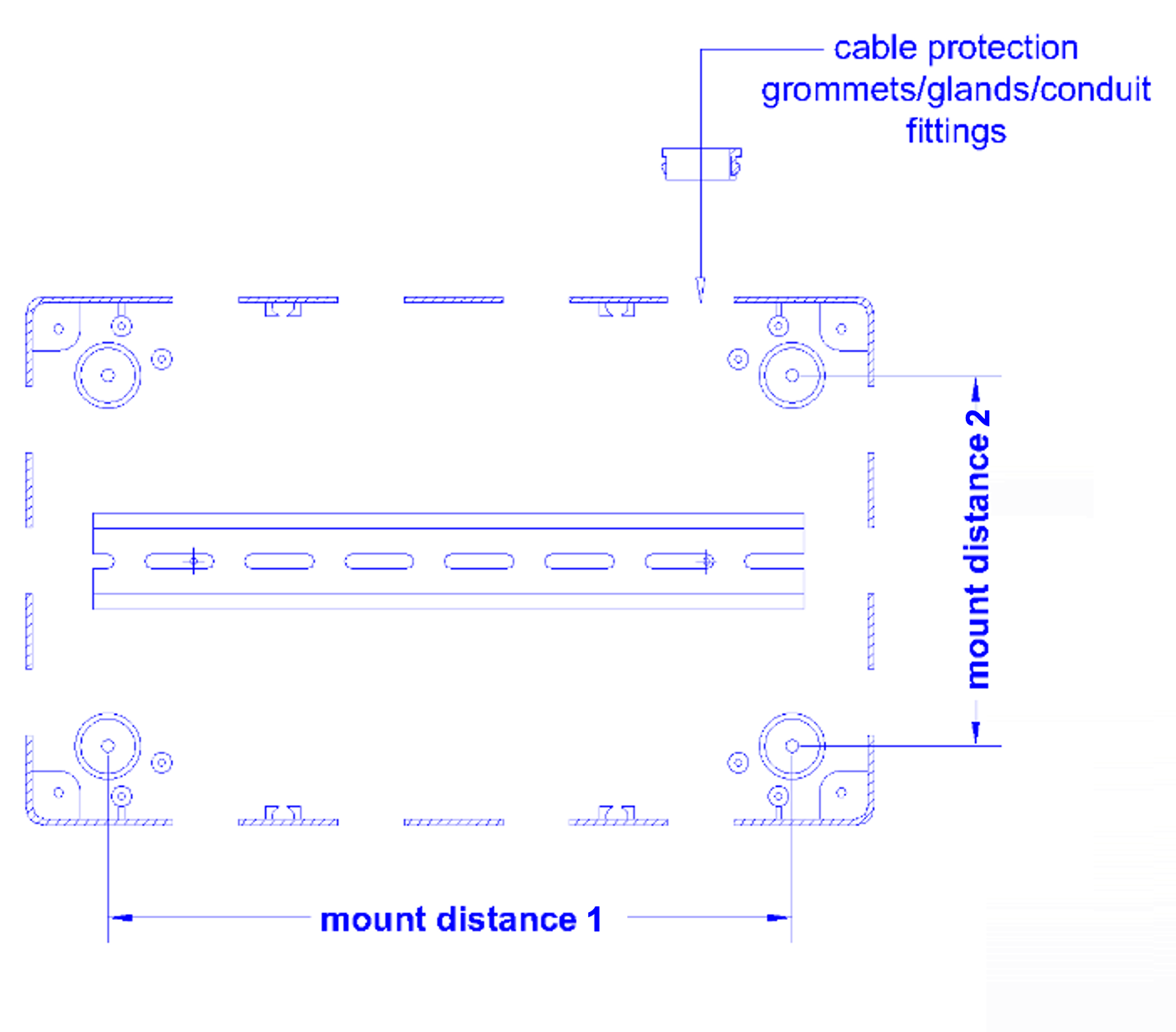

Dimensions
| Model: | i21-HT-3WAY | i21HT-15WAY | i21HT-18WAY |
|---|---|---|---|
| Size: | 154mm x 73mm x 62mm (6.06" x 2.87" x 2.44") | 310mm x 200mm x 110mm (12.20" x 7.87" x 4.33") | 365mm x 200mm x 108mm (14.37" x 7.87" x 4.25") |
| mount distance 1 | 112 mm (4.41”) | 247 mm (9.72”) | 302 mm (11.89”) |
| mount distance 2 | 36 mm (1.42”) | 134 mm (5.4”) | 139 mm (5.47”) |
