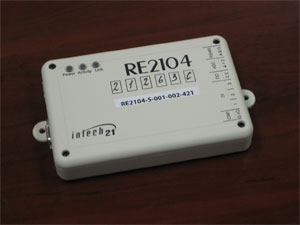

RE-2104 can be used as a standalone local server, RS485 to Ethernet communication converter, communication buffer, pulse counter for energy meters, digital I/O interface.

The real time operating system Nut/OS is ported on the board.

Nut/OS is an intentionally simple RTOS for the ATmega128, which provides a minimum of services to run Nut/Net, the TCP/IP stack. Its features include:

• Non-preemptive multithreading.


• Events.


• Periodic and one-shot timers.


• Dynamic heap memory allocation.


• Interrupt driven streaming I/O.



Supported Equipment

• ZVLC


• MEPCO


• OPLC


• HWHC


• KW2104


• KW2108


• KYZ


• Preferred


• Sensor Phone


• RS-232 serial port with on-board DB-9 connector


• LED indicators for power supply, programming
  mode and Ethernet activity


• Single power supply DC 9-15V / 1A



Peripherals

• RS485 adapter;


• 3 opto-coupled digital inputs + 1 opto-coupled output.


• 1-wire interface for possible connection of
  temperature sensor


• 2 analog inputs.


• 32Kbytes EEPROM with I2C interface
